Wind-solar-diesel Hybrid System

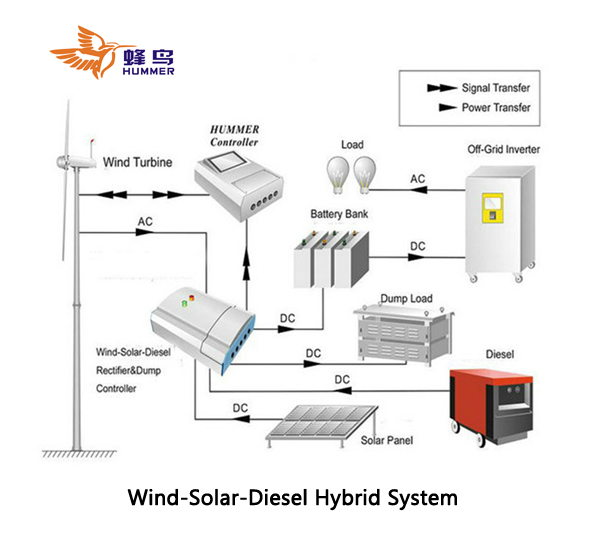

Wind-solar-diesel hybrid system is an installation using diesel generator as the standby power and making full use of wind energy and solar power. Its main working principle is in the following: the electricity generated from wind turbine and solar panels charges battery bank after being rectified and then supplies power to the load through inverter. When wind and solar energy cannot meet the demands of powering a load, diesel generator will start up to serve as the standby power. The cooperation of three energies makes up interrupted imbalance and instability of the power supply from various energies, thus to realize the goal of uninterruptible power supply. In addition, the system is neither relying on public grid, nor restricted to region. It is quite energy-conserving and environment-friendly to guarantee the reliability of system power supply.

Applicable models: 500W-200kW.

Application fields: telecommunication base station, navigation base station, power transmission station, satellite ground station and VSAT station, etc.

Configuration: wind generator, solar panel, diesel generator, controller, inverter and batteries.

Features:
1. The system is independent and easy in assembly. There is no need to lay long electric transmission lines.
2. Wind energy and solar power are two main power supply sources. Diesel generator works as the standby power to guarantee the stability of power supply.
3. Free of electric charge and low maintenance costs reduce the electric power cost effectively.
4. The utilization of renewable resources helps to save energy and protect environment, and achieve the state of pollution-free and radiation-free.
