On-grid Wind Turbine System

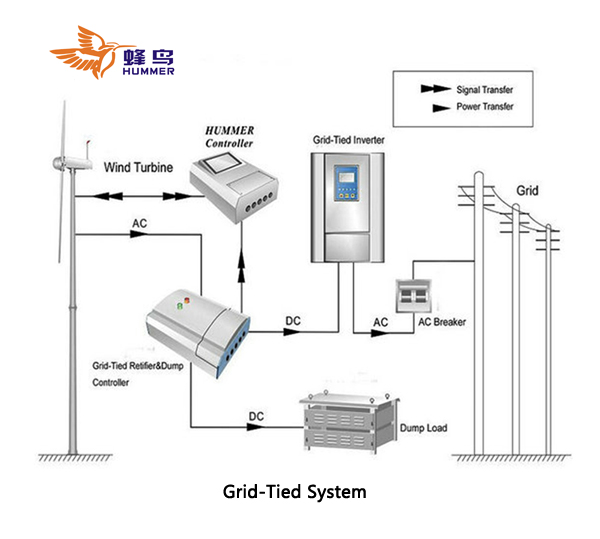

The electricity generated from wind generator is transferred to the grid-tied inverter after being rectified. When the input DC voltage of inverter reaches the start-up voltage value, the inverter will merge into public grid. This system can relieve the pressure of state grid to some extent.

Applicable models: 1kW-200kW.

Configuration: wind generator, SIEMENS PLC controller, rectifier, on-grid inverter and bio-directional meter.

1. Accessing the power grid can relieve the pressure of state grid effectively.
2. Simple in whole structure, easy in assembly.
3. Low assembly and maintenance costs, obvious economic benefits.
4. The utilization of renewable resources helps to save energy and protect environment.
