H13.2-20KW Wind turbine

online order





1. Ultrasonic Dogvane & Anemometer



There is no mechanical moving parts, which with high accuracy and long lifespan. It can remove snow and frost automatically because of the electrical heating function. It can be used in cold and bad condition areas. All HUMMER pitch-controlled systems match with the ultrasonic dogvane & anemometer.





 2. PLC control system



Hummer 5kW and larger models are matched with Siemens PLC system, which is with high disturbance resisting and stable operation. Hummer pitch-controlled system adopts double PLC systems, the two systems are on real-time communication, which means that, if any of the PLC system is broken down, the other one can stop the system safely, which can greatly protect the system.







3. Servo motor



Hummer pitch-controlled models matches with three high-performance servo motor:

(1) Yawing servo motor

(2) Hydraulic braking servo motor

(3) Pitch servo motor

Siemens PLC system greatly matches with servo motor, which make Hummer pitch-controlled models operate reliably. Because of the PID Self-turning function of the servo motor, the blades works rapidly and reliably.



4. Touch screen



Hummer 5kW and larger models match with touch screen. There is internet access, which can remote monitoring the system and get the operation data. Especially when there is fault, users can contact Hummer technician, they can remote diagnosis and debug the fault, and can offer software updating function.



5. Rectifier and dumping controller & Dumping load



Wind turbine outputs unstable 3-phase alternating current power, it can be converted to DC power after the rectifying by the Silicon Controlled Rectifier(SCR), then supply to on-grid inverter, and send to power gird or charge the batteries to store. Under the strong wind speed status, the extra power above the rated power will be consumed by the dump load. Hummer matches the stainless steel dump load with high temperature resistance, the heat will be emitted in naturally through the thermal efficiency of chimney, no cooling fan will be needed.

6. Specification:

Configuration 3Blades,Horizontal axis,Upwind
Rotor Diameter 13.2m
Blade Length 6.2m
Swept Area 136.85m2
Direction of Rotation Clockwise(facing blades)
Blade Material Fiberglass reinforced composite
Rated Power 20kW,10m/s
Direct Voltage 350V,DC
Direct Current 35A,DC
Start-up Wind Speed 3.0m/s
Rated Rotating Rate 90r/min
Working Wind Speed 3-25m/s
Survival Wind Speed 50m/s
Alternator Permanent  magent alternator,SCF technology
Wind Energy Utilizing Ratio
0.42 Cp
Gearbox None,Direct drive generator design
Energy monitoring & User control
Siemens touch screen,Siemens PLC controller,Internet telecom & remote monitoring
Generator Efficiency
>0.90
Alternator Weight
800kg
Hydraulic Braking System
Servo motor drive braking cylinder
Dogvane/Anemometer
Ultrasonic,have electrical heating function
Over Speed Protection
Pitch control
Shutting Down Method
Blades feathering 90o degree, Hydraulic braking rotor blade

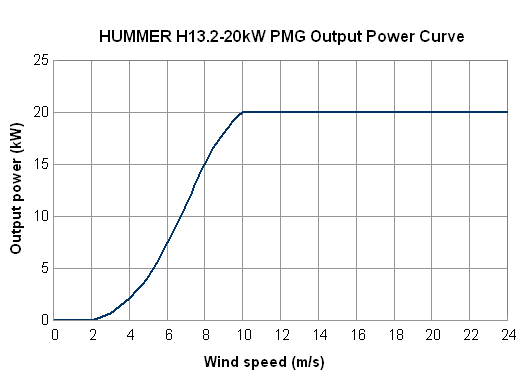

7. Output power curve:
