H6.4-5KW Hummer Wind Turbine Generator



Hummer 5kw wind turbine can be off-grid and on-grid system, the generator is direct-drive permanent magnet 3-phase generator. It looks for wind rely on serve motor yawing system.



Specifications:





Configuration 3Blades,Horizontal axis,Upwind
Rotor Diameter 6.6m
Blade Length 3.255m
Swept Area 32.17m2
Direction of Rotation Clockwise(facing blades)
Blade Material Fiberglass reinforced composite
Rated Power 10m/s
Direct Voltage 300V,DC
Direct Current 10.2A,DC
Start-up Wind Speed 2.5m/s
Rated Rotating Rate 165r/min
Working Wind Speed 3-25m/s
Survival Wind Speed 50m/s
Alternator Permanent  magent alternator,SCF technology
Wind Energy Utilizing Ratio
0.40 Cp
Gearbox None,Direct drive generator design
Energy Monitoring & User control

Siemens touch screen,Siemens PLC controller,Internet telecom & remote monitoring

Generator Efficiency >0.80
Alternator Weight 219kg
Hydraulic Braking System
Siemens servo motor drive braking cylinder(optional configuration)
Dogvane/Anemometer Mechanical(standard configuration) ; Ultrasonic(optional configuration) None
Over Speed Protection
Auto Yawing+Braking
Shutting Down Method  Manual & Automatic electromagnetism Braking or Hydraulic Braking

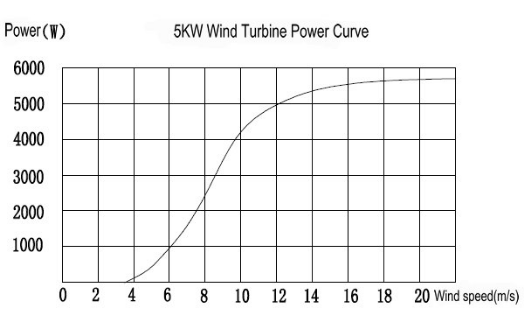

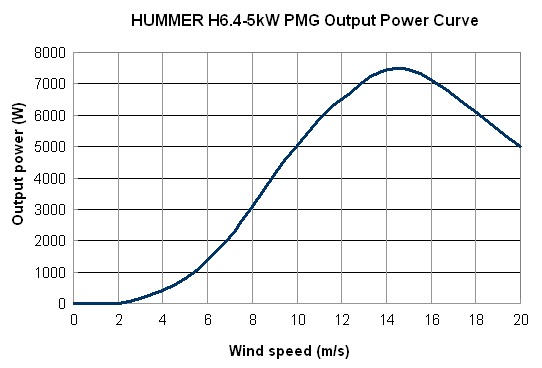

Output Power Curve:
