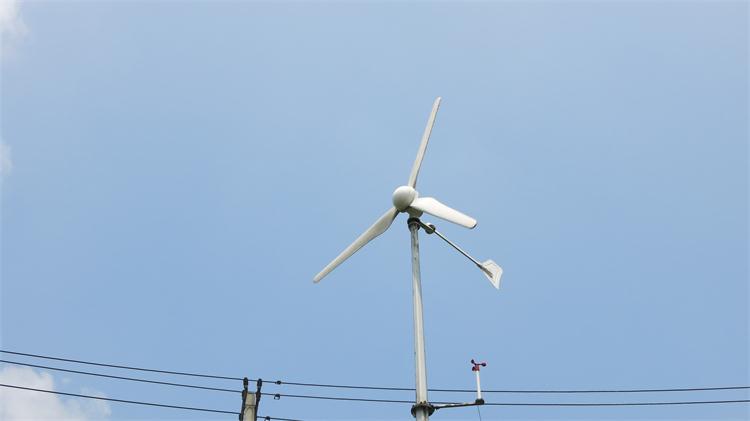

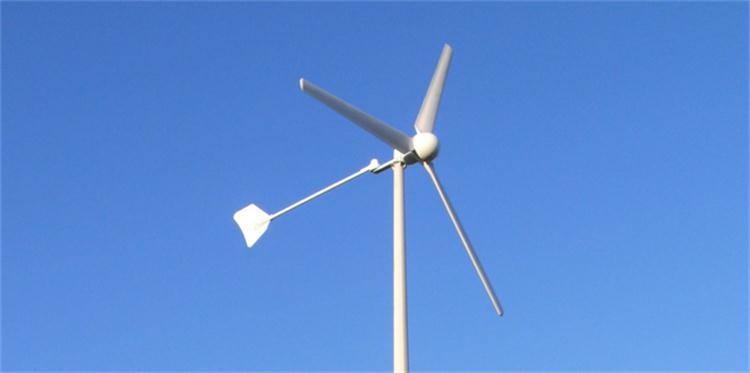

Hummer 2kW wind turbine can be off-grid and on-grid system, the generator is direct-drive permanent magnet 3-phase generator. It looks for wind rely on tail rod.
Specification of H3.8-2kW:
| Configuration |
3Blades,Horizontal axis,Upwind |
| Rotor Diameter |
3.8m |
| Blade Length |
1.835m |
| Swept Area |
11.34m2 |
| Direction of Rotation |
Clockwise(facing blades) |
| Blade Material |
Fiberglass reinforced composite |
| Rated Power |
2kW @ 9m/s |
| Direct Voltage |
120V,DC |
| Direct Current |
10.2A,DC |
| Start-up Wind Speed |
3m/s |
| Rated Rotating Rate |
450r/min |
| Working Wind Speed |
3-25m/s |
| Survival Wind Speed |
50m/s |
| Alternator |
Permanent magent alternator,SCF technology |
|
Wind Energy Utilizing Ratio
|
0.45 Cp
|
| Gearbox |
None,Direct drive generator design |
|
Energy monitoring & User control
|
LED display
|
|
Generator Efficiency
|
>0.80 |
|
Alternator Weight
|
31kg |
| Dogvane/Anemometer |
None |
| Over Speed Protection |
Auto Yawing(Aerodynamics)
|
| Shutting Down Method |
Manual & Automatic electromagnetism Braking
|

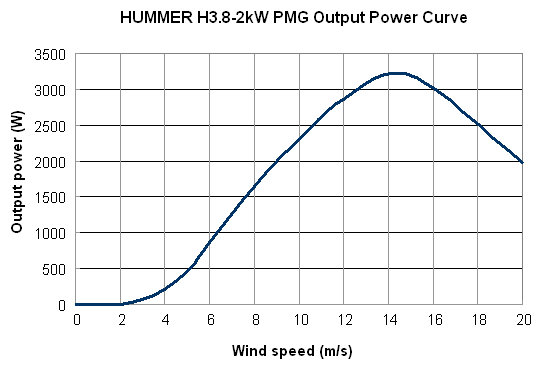

2kW Output Power Curve:
|
